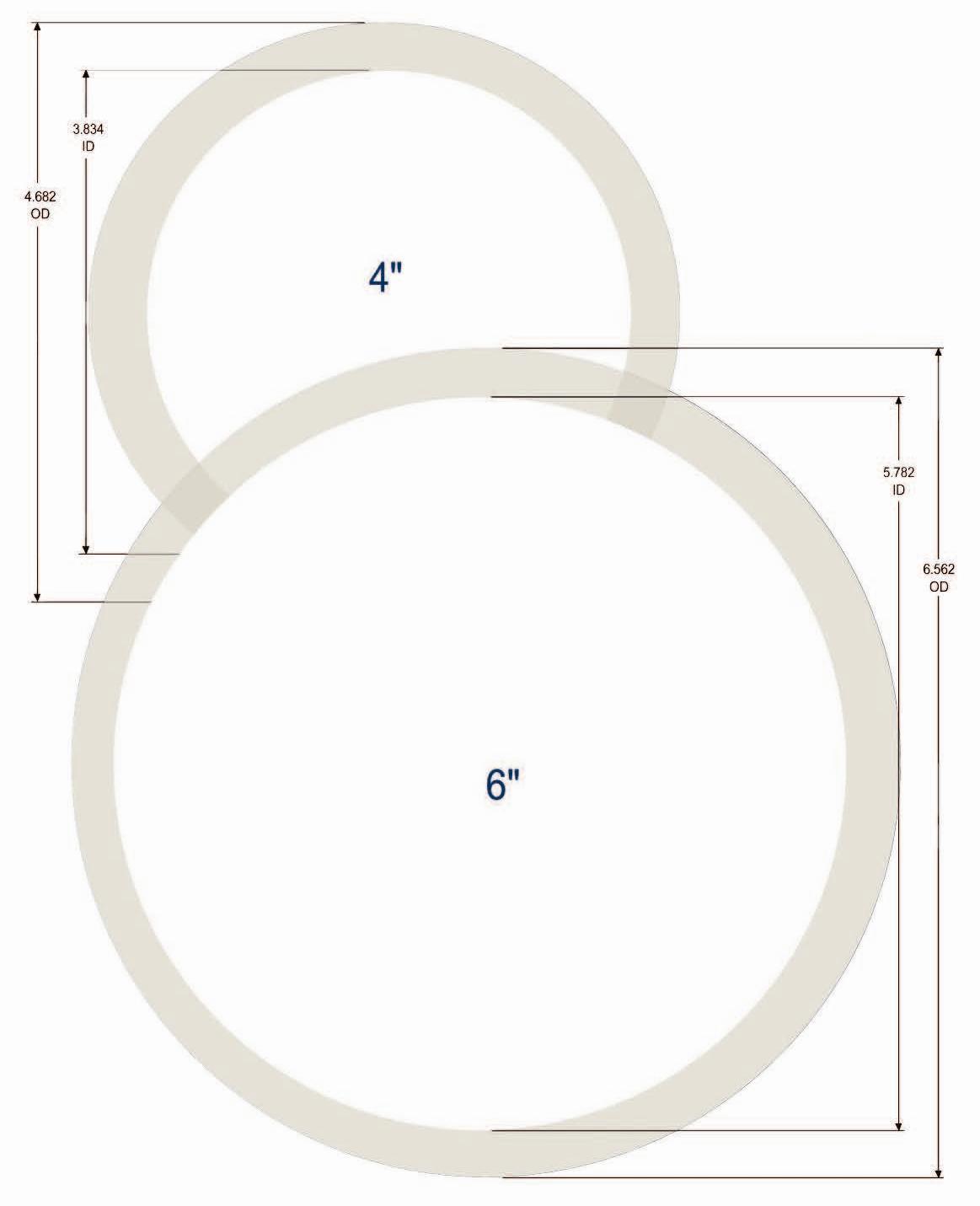

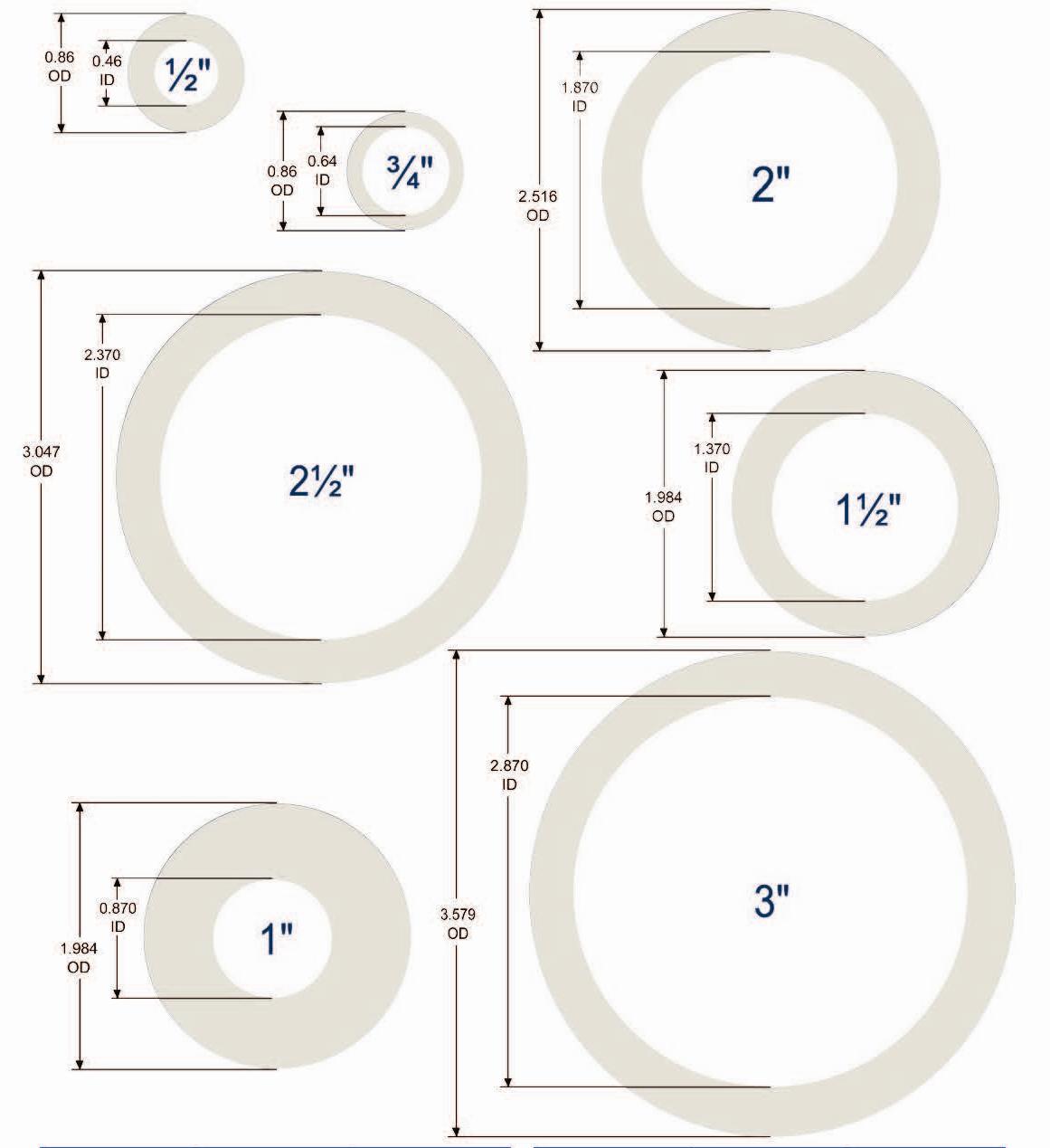

CLAMP FITTINGS AND GASKET SIZING GUIDE


Sanitary Size OD of Clamp End ID of Fitting
½" 0.992 0.370
¾" 0.992 0.620
1" 1.984 0.870
1½" 1.984 1.370
2" 2.516 1.870
2½" 3.047 2.370
Sanitary Size OD of Clamp End ID of Fitting
3" 3.579 2.870
4" 4.682 3.834
6" 6.562 5.782
8" 8.602 7.782
10" 10.57 9.782
12" 12.57 11.76
